Settings

Use this guide to make a settings page using the EditorEX SDK.

Prerequisites

A ViewControllers Installer for your mod

Step 1: Create a Settings ViewContent

Create a class implementing IViewContent<SettingsViewData>
The Create method should return a ReactiveComponent from ReactiveUI .


//SettingsViewData tells EditorEX that this ViewContent is a settings page.
class MyModSettingsViewContent : IViewContent<SettingsViewData>
{
    public ReactiveComponent Create()
    {
        //Add your UI here, this is just an example.
        return new Layout() {
            Children = {
                new EditorImage() {
                    Source = "https://picsum.photos/300" //Source is based on BSML resource locations, can be assembly embedded or a URL. Animated gifs are not supported in the editor.
                }
            }
        }.AsFlexGroup(FlexDirection.Column);
    }

    public SettingsViewData GetViewData()
    {
        //This is metadata that will be passed depending on where the viewcontent is used. For setting pages, this is just the mod name.
        return new SettingsViewData("Mod Name Here");
    }

    public void OnEnable()
    {
        //Called when the view is enabled
    }

    public void OnHide()
    {
        //Called when the view is hidden
    }
}

Step 2: Bind your ViewContent


public class MyModViewControllersInstaller : Installer
{
    public override void InstallBindings()
    {
        Container.Bind<IViewContent<SettingsViewData>>().FromInstance(new MyModSettingsViewContent());
    }
}

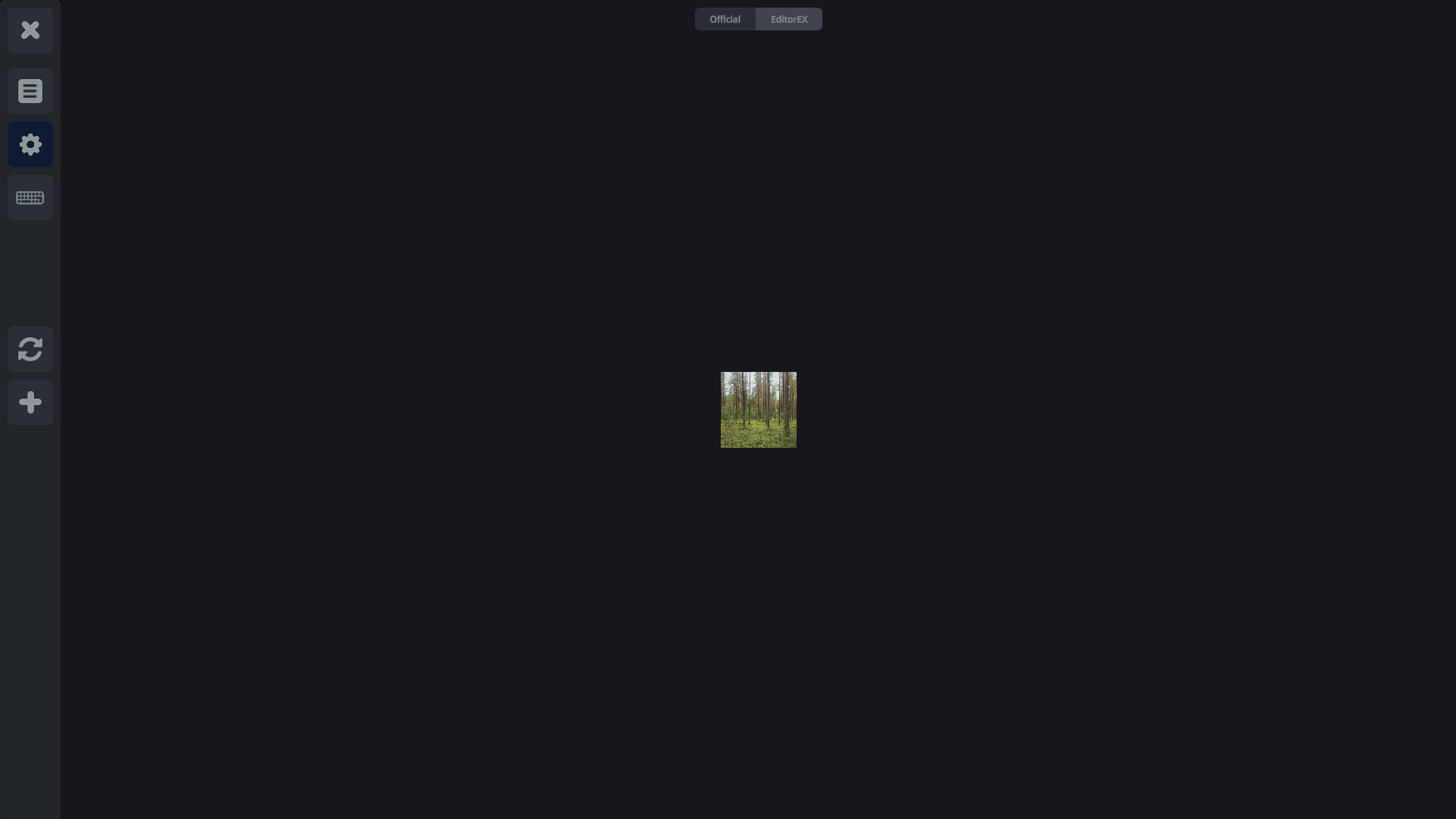

Step 3: Check In-game

You should now see your settings page in the settings menu of the editor.
